Four-Roller Grist Mills

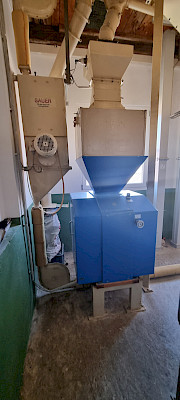

Four-roller malt mill with intermediate screening

A four-roller grist mill crushes the malt in two passes. Between the two roller pairs, an intermediate screen (on models with screen case) adjusts and secures the grist composition, so the grist matches the needs of your brewhouse and your lautering. Models range from 400 kg/h to 3,000 kg/h, the largest with automatic roller adjustment.

Key facts

  • Optimal grist composition as the basis for the enzymatic digestion in the mash
  • A brewery-specific mill can reduce malt consumption by as much as 10%
  • Very robust construction and long service life
  • High operational reliability and low maintenance costs
  • Intermediate screening to adjust and secure an optimal grist composition

Künzel models and capacities

Type 16/16-2+2

  • Capacity: up to 400 kg/h (880 lb/h)
  • Roll diameter: 160 mm
  • Roll length: 160 mm
  • Electrical connection: approx. 2 x 1.5 kW
  • Weight: approx. 300 kg

Type 16/30-2+2 (without screen case)

  • Capacity: up to 800 kg/h (1,760 lb/h)
  • Roll diameter: 160 mm
  • Roll length: 300 mm
  • Crushing drive: 2 x 3 kW
  • Weight: approx. 450 kg

Type 20/30A

  • Capacity: up to 800 kg/h (1,760 lb/h)
  • Roll diameter: 200 mm
  • Roll length: 300 mm
  • Electrical connection: 2.5 kW

Type 20/60A

  • Capacity: up to 1,600 kg/h (3,530 lb/h)
  • Roll diameter: 200 mm
  • Roll length: 600 mm
  • Electrical connection: 4.5 kW

Type H 20/60-4 (automatic roller adjustment)

  • Capacity: up to 3.0 t/h (6,610 lb/h)
  • Roll diameter: 200 mm
  • Roll length: 600 mm
  • Electrical connection: 2 x 6 kW

Design and equipment

  • Intake bin 100 l, optionally in stainless steel when the malt is conditioned
  • Edged and welded steel sheet construction
  • Final coat of paint according to RAL 1015

Four-roller mills for adjuncts

For rice or barley, four-roller mills are available with capacities from 1,500 to 10,000 kg/h.

data sheet

send inquiry

Two, four or six rollers: which grist mill fits your brewery?

  • Two-roller mills (250 to 500 kg/h): one pair of rollers crushes the malt in a single pass, the robust choice for brewpubs, craft breweries and pilot plants.
  • Four-roller mills (400 to 3,000 kg/h): two passes, with intermediate screening between the roller pairs depending on the model, for an optimal grist composition and better lautering.
  • Six-roller mills (1,000 to 14,000 kg/h): screening between each pair of rollers for particularly precise fractions; the husks can be separated and mashed in separately.

proBrau is not tied to one manufacturer: we source grist mills from Künzel, Engl, Bühler and Täuber and recommend the mill that fits your brewhouse and your capacity.

For a complete grist preparation, combine the mill with grain and malt handling such as malt intake, cleaning, weighing and malt conditioning screws. Malt houses, farmers and distilleries producing their own malt will find the Kaspar Schulz drum malting system here as well.

What good milling has to achieve

Milling crushes the malt and prepares it for mashing, the first step of the brewing process. The most important requirements are:

  • crushing of the grain to the desired particle sizes
  • a constantly low proportion of flour
  • maximum protection of the husk structure
  • the possibility of husk separation
  • adaptation to varying malt qualities
