After detailed discussion with proBrau about the individual requirements and vision for the new brewery in Northglenn, Prost Brewing decided to get a Kaspar Schulz brew house.

In the decision making the flexibility, energy efficency and the high degree of automation were key factors along with the long tradition of Kaspar Schulz and their high reputation world wide.

The vision of Prost Brewing Co. is to brew the highest quality beers for themselves consistently, but also offer contract brewing for selected partners.

more information about Prost Brewing Co.

malt handling system from Künzel

26 tons (57,000 lbs) outdoor malt silo with automatic discharge to malt mill
2x automated BigBag station for specialty malts
Specialty malt hopper

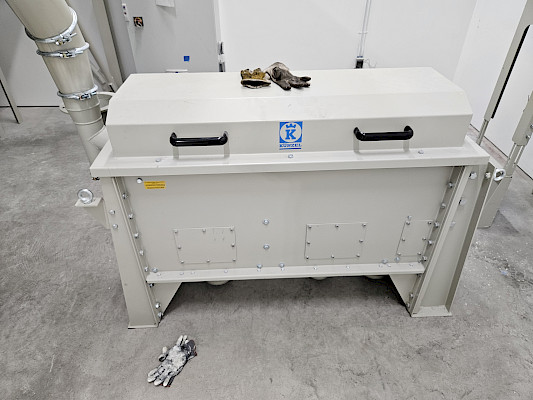

Drum sieve for pre-cleaning of the malts up to 3 tons/hr (6,600 lbs/hr)

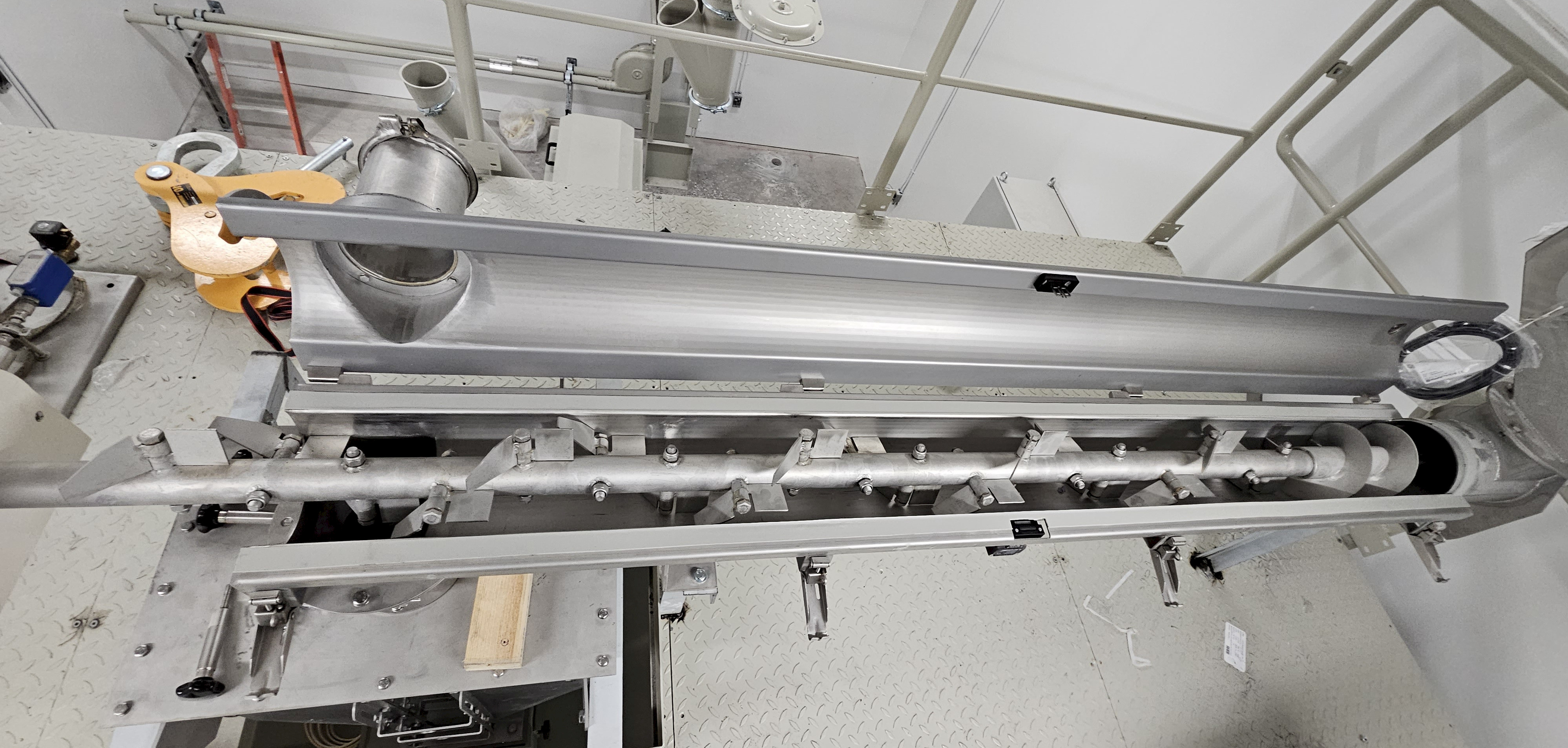

Malt humidification screw MBS 150E for up to 2% moisture uptake with a capacity of 1,4 tons/hr (~3,000 lbs/hr) - better lautering and malt extraction (due to better grind results)
KÜNZEL-6-Roller malt mill type A 20/40 E with stainless steel intake, auto adjustable rollergaps, grist / husk speration with sieves, capacity of 1,4 tons/h (~3,000 lbs/hr) and controls for individual milling depending on the malt
Malt bin and seperate husk bin for endosperm mashing, both with explosion protection
Post mill hopper for flaked products
Chain disc conveyors for gentle malt and grist transport to the 20bbl brew house and the new 50bbl Kaspar Schulz brew house
Fully automated controls and integration in Kaspar Schulz software
Installation by a domestic crew from proBrau

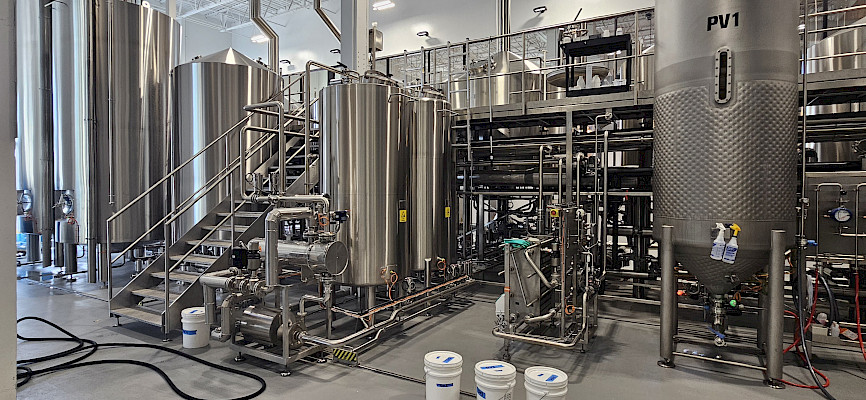

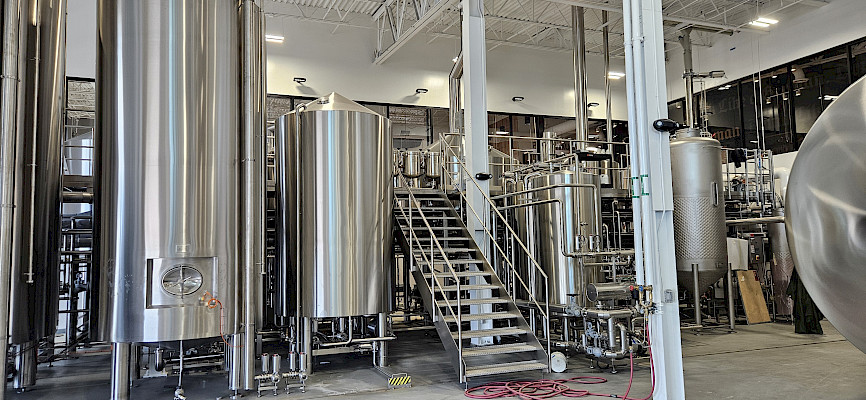

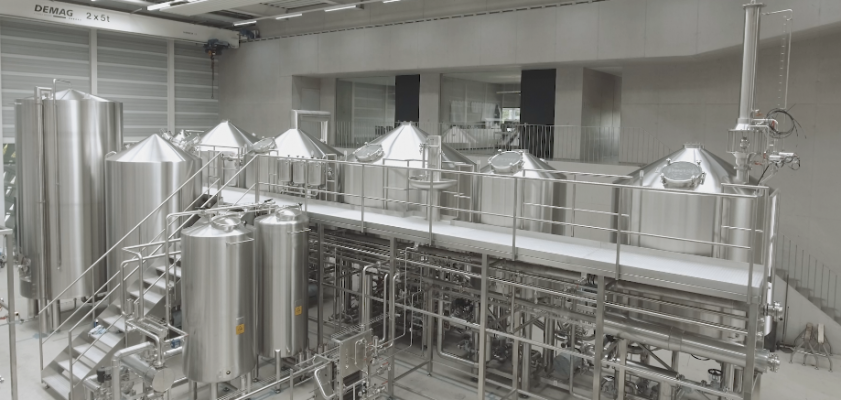

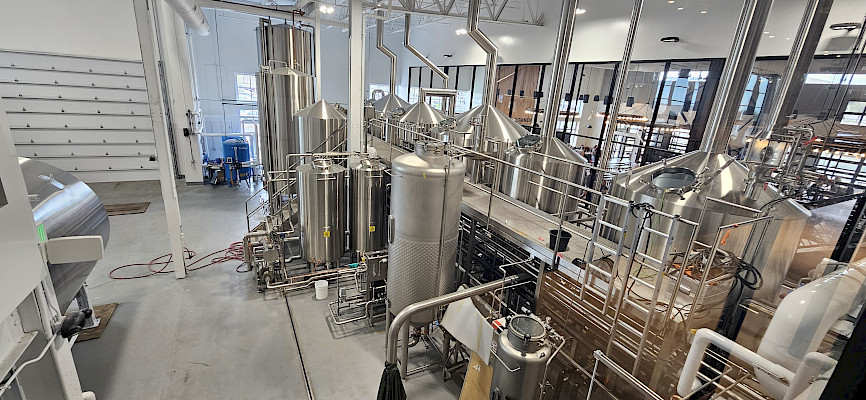

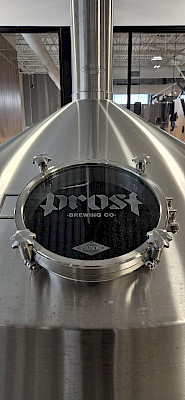

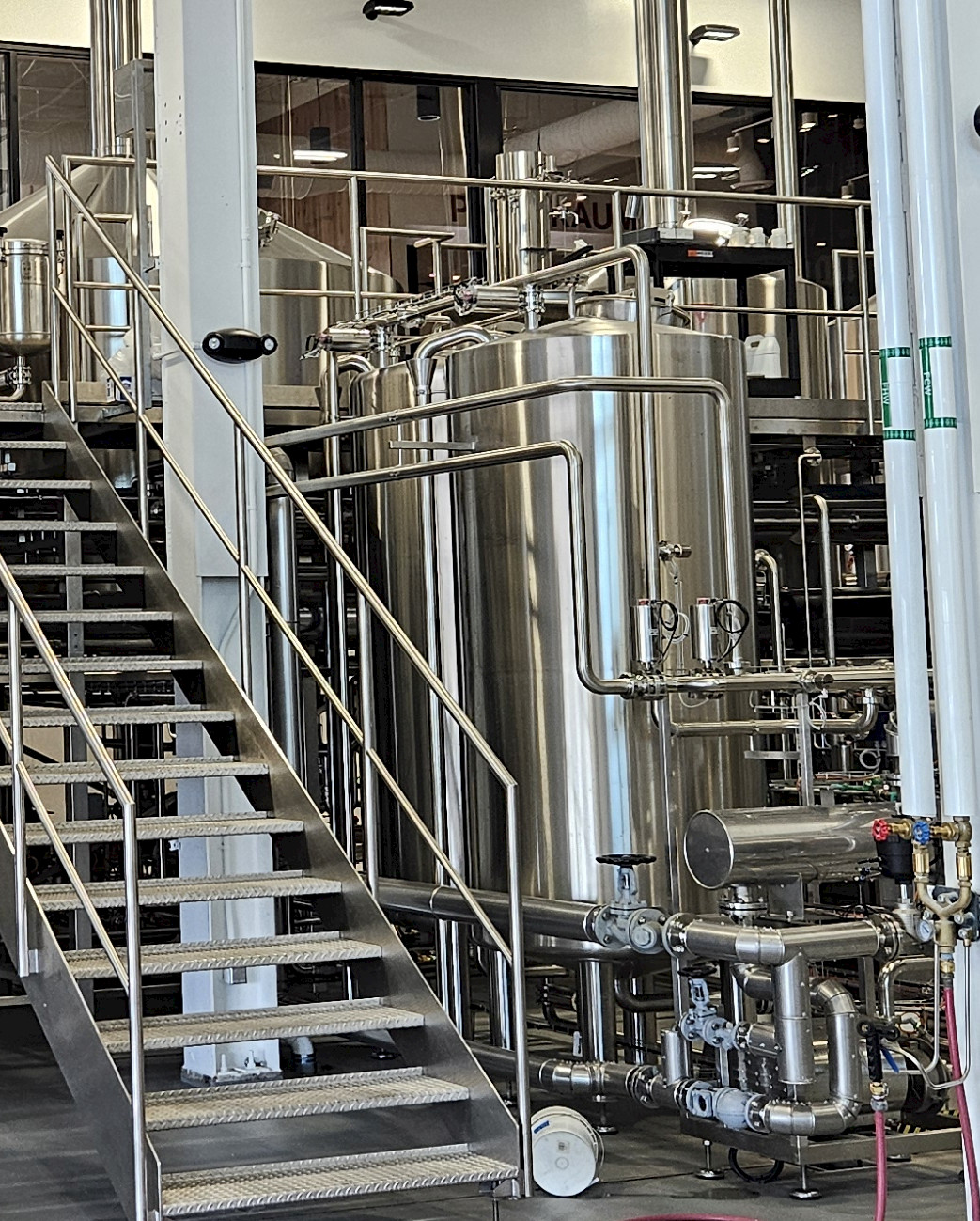

5-vessel Kaspar Schulz brewhouse 50 bbl

"Optimasher", premashing device for gentle mixing water and dry grist to obtain ready mash
oversized mash kettle with quick heat up (> 1 K/min) equiped with gentle three armed agitator
additional mash kettle for decoction mashing
oversized mash/lauter tun (16 °Plato) with SCHULZ lautering controls
wort kettle with external heat exchanger allows to boil all different volumes and evaporation rates
wort stripping system for a post whirlpool vacuum evaporation helps to minimize boil times and get a good post boil DMS evaporation (low TBZ)

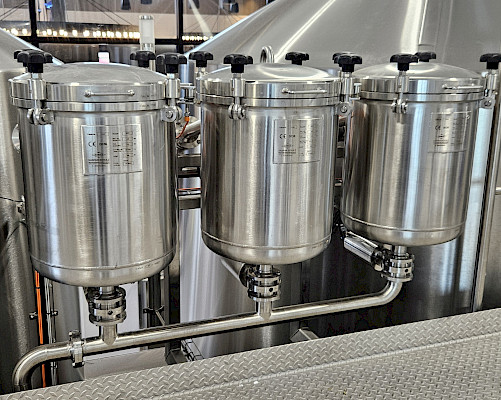

automatic hop dosing unit
oversized whirlpool for high hoploads in brew kettle design, CRAFT AIR wort aerator from ESAU&HUEBER

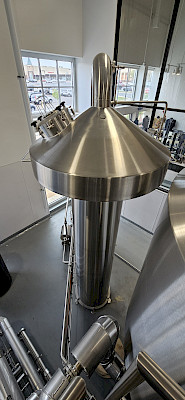

effiicient vapour condenser for brewhouse enabling heat recuperation and minimize odour emission
fully automated with PioneerPro from SCHULZ

here we go:

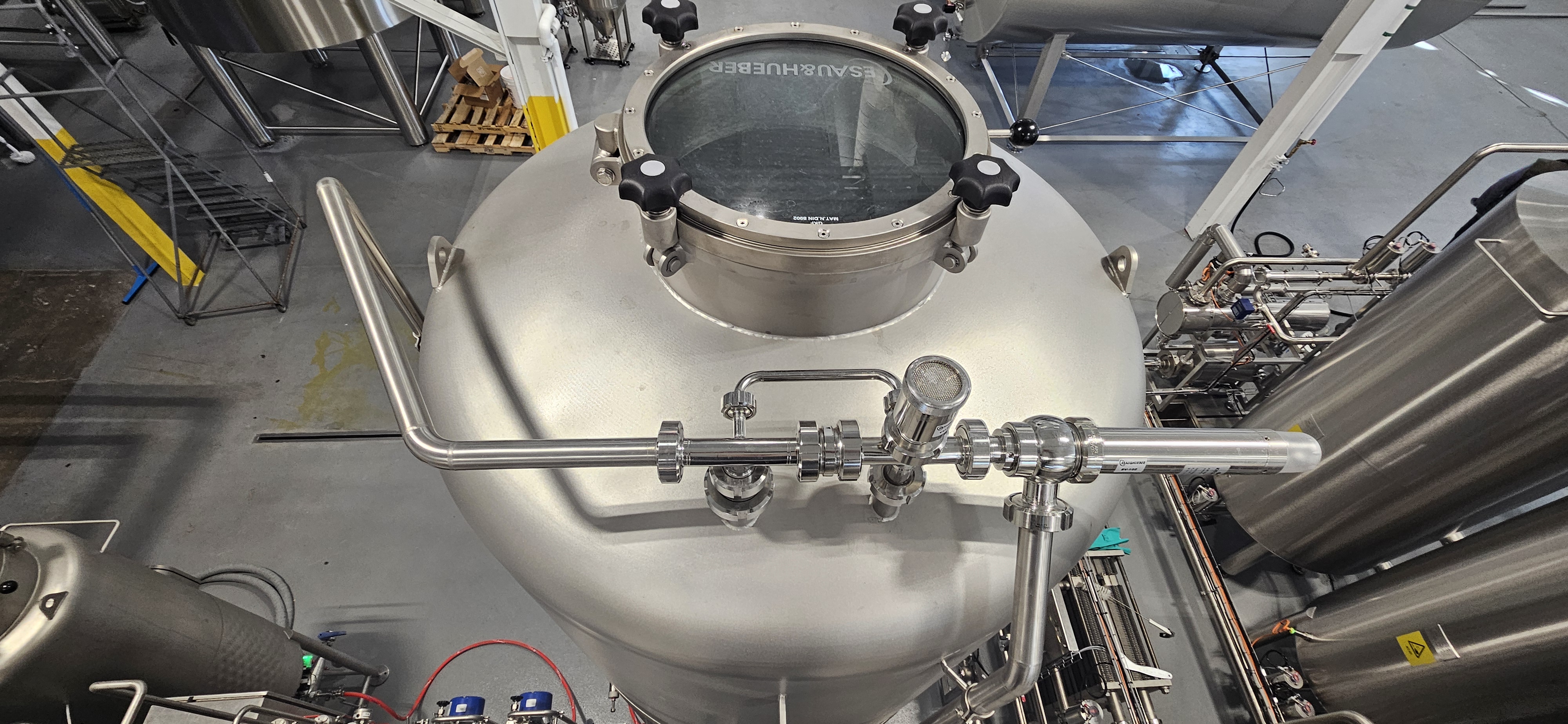

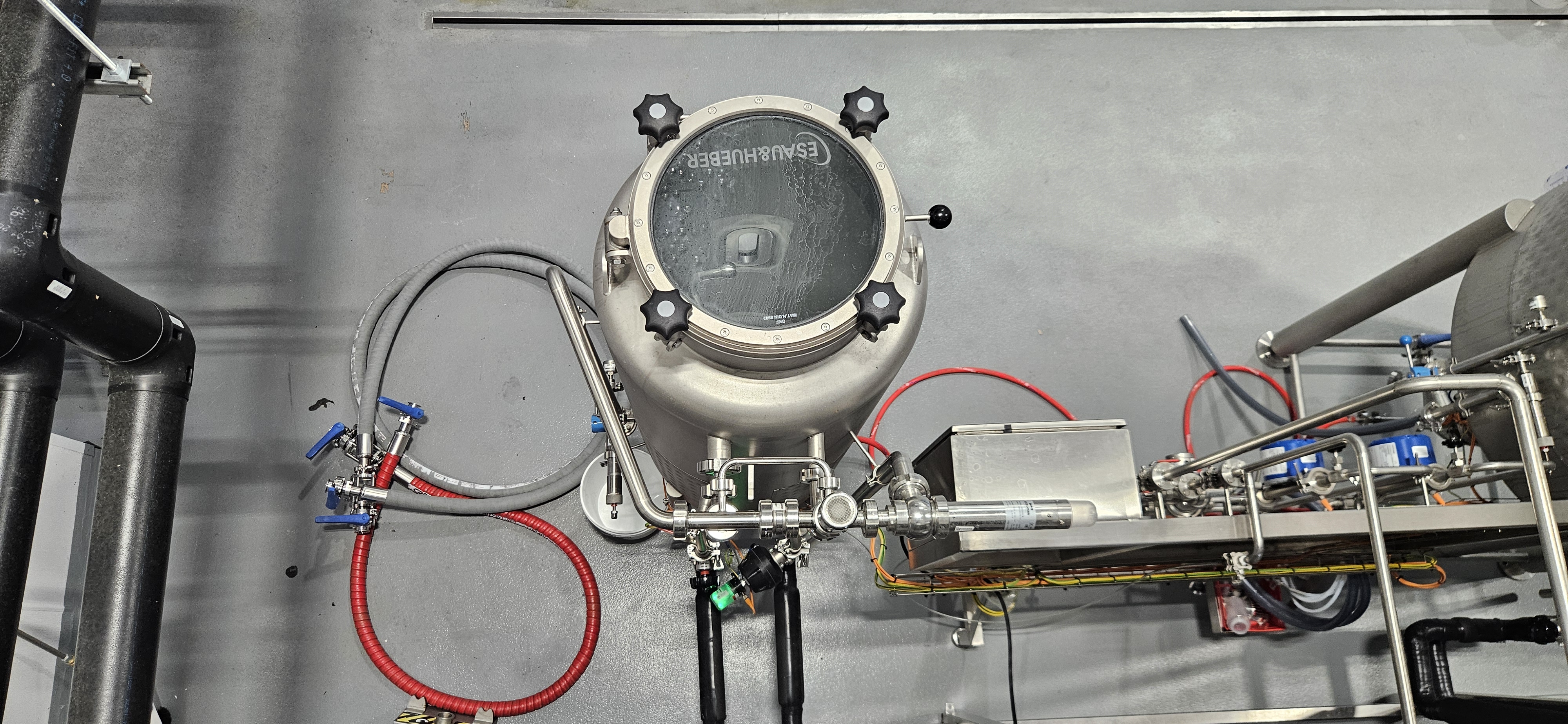

2x 20 hl yeast propagation from ESAU&HUEBER

hygenic design and semi-automated
oxidative yeast damage avoided due to design and automation
yeast propagation tanks with seperate sterial gas panel
fully steamable for sterilization
included in the PioneerPro automation system

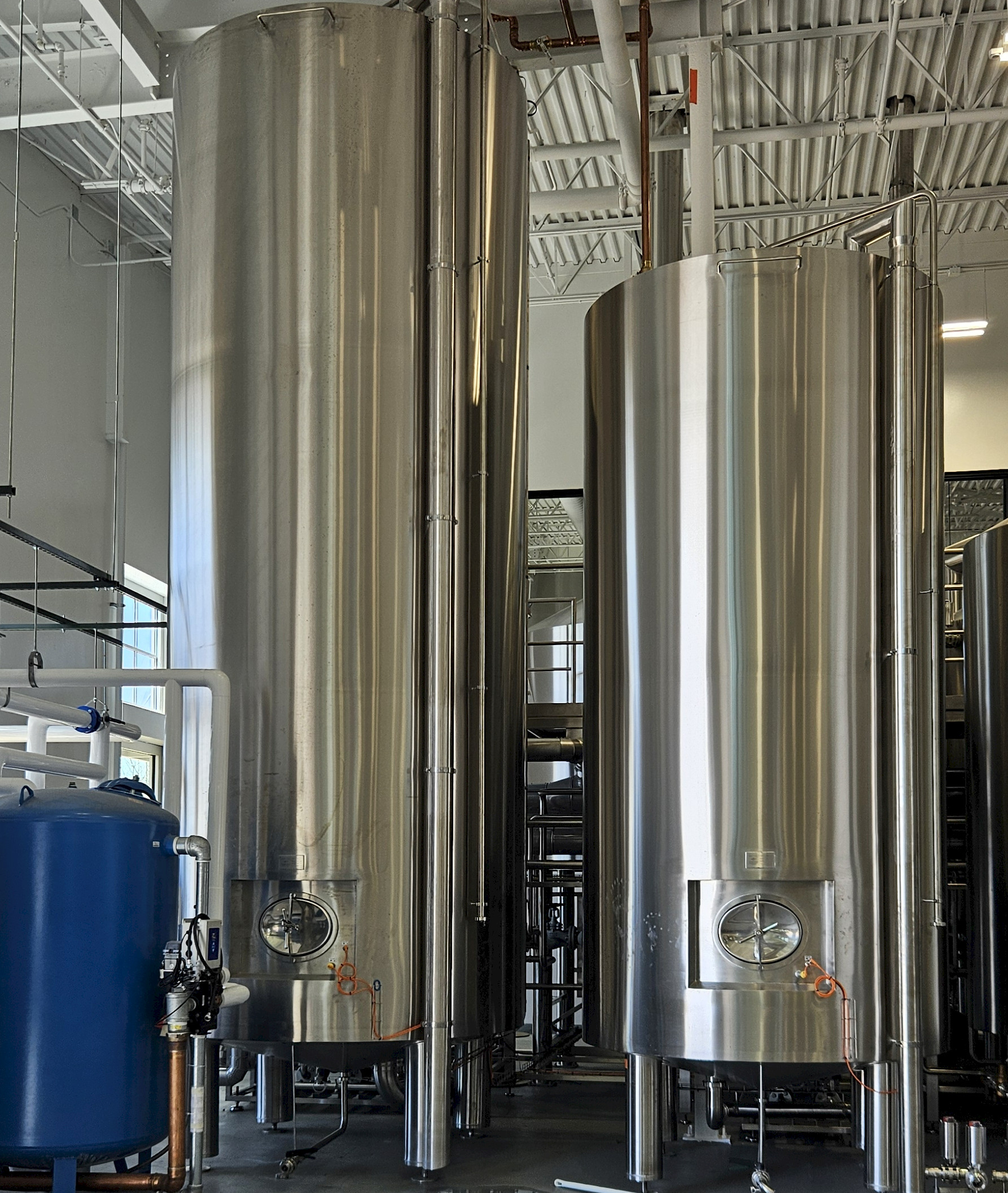

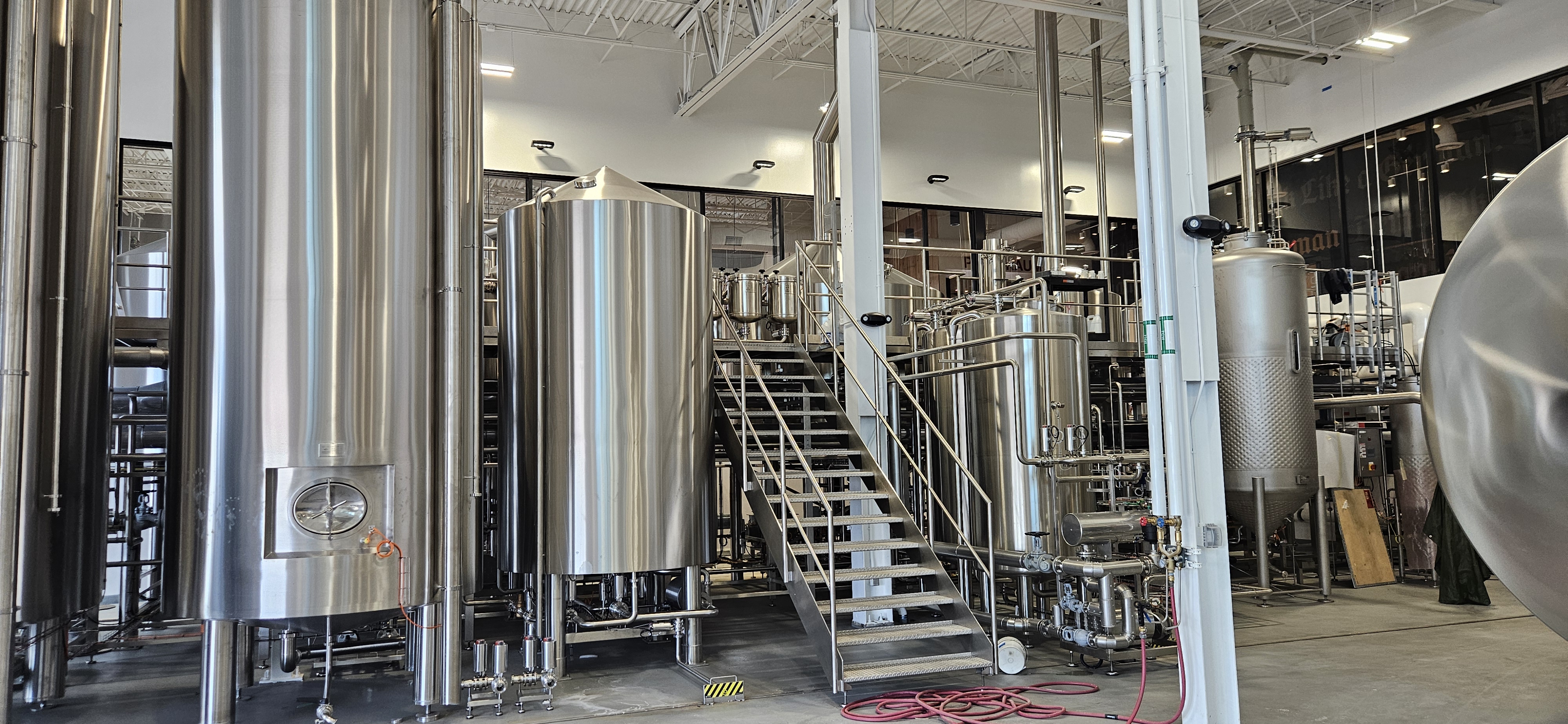

Kaspar SCHULZ water management system

100 bbl cold liqour tank, fine ground and insulated with pump station
175 bbl hot liqour tank out of 1.4571 stainless steel incl. external heating and pump station
included in the PioneerPro automation system

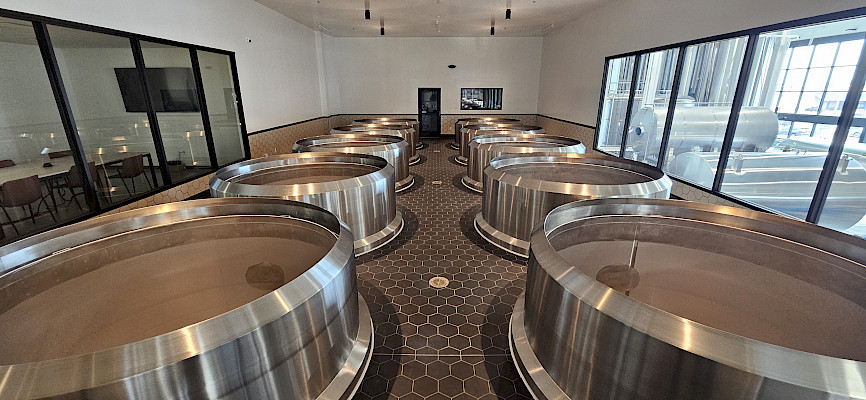

10x 100 bbl open fermenters

Kaspar SCHULZ open fermentation tanks (four for wheatbeer)
patented design allows automatic cleaning without lid
yeast harvest for top fermenting yeasts
side wall and cone cooling with high efficient cooling template
included in the PioneerPro automation system

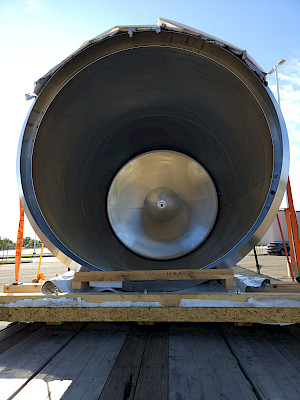

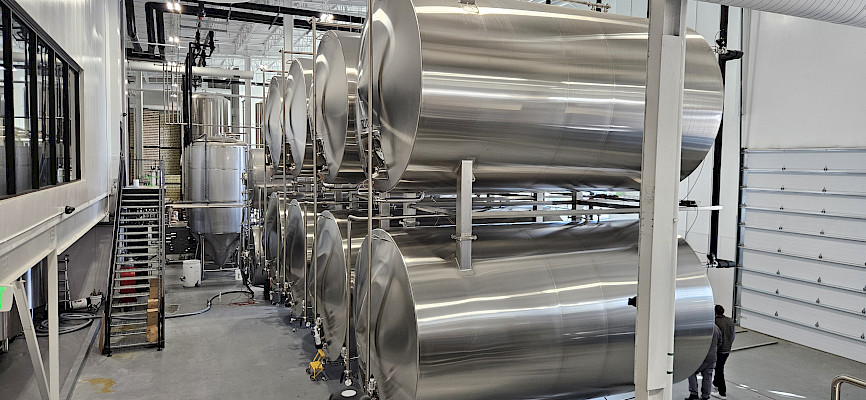

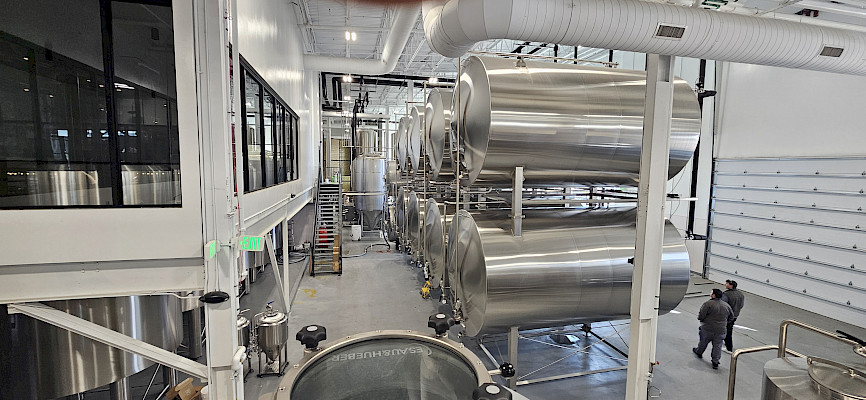

6x 200 bbl horizontal lagering tanks

design for automatic cleaning and yeast harvest
stacked two high
minimizes hydrostatic stress on yeast
good clear out of green beer
included in the PioneerPro automation system

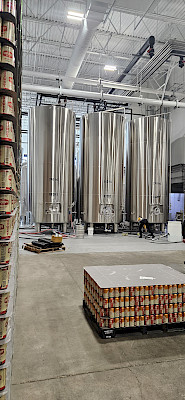

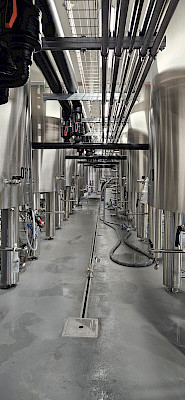

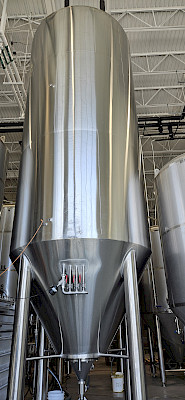

fermentation cellar with CCTs from Kaspar SCHULZ

perfect height liquid level ratio
insulated 100 mm and different cooling zones
included in the PioneerPro automation system

CIP system for brew house and fermentation cellar

fully automated CIP systems (15/20 hl)
two supply lines in cellar CIP system
consistent cleaning of all fermentation and storage tanks
automatic sanitation of filtration and filling units
included in the PioneerPro automation system

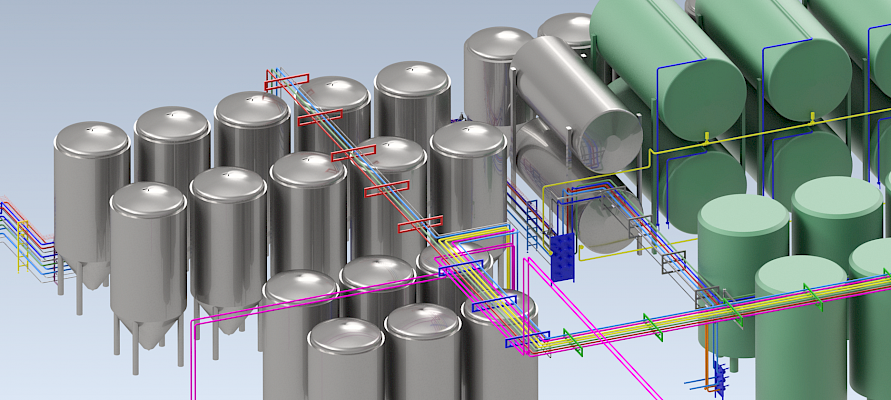

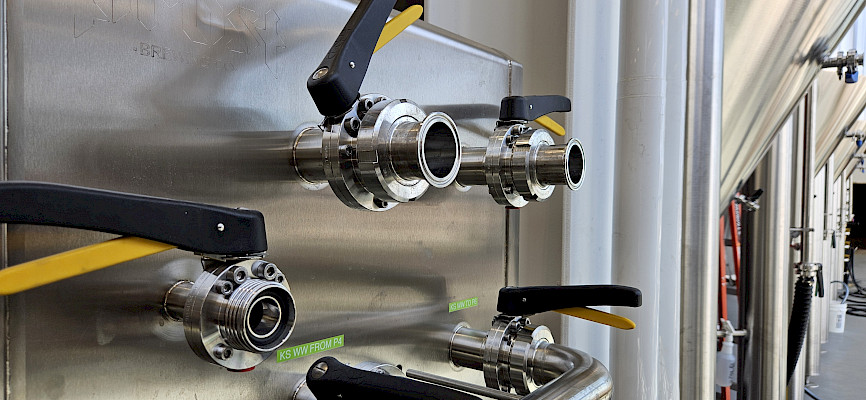

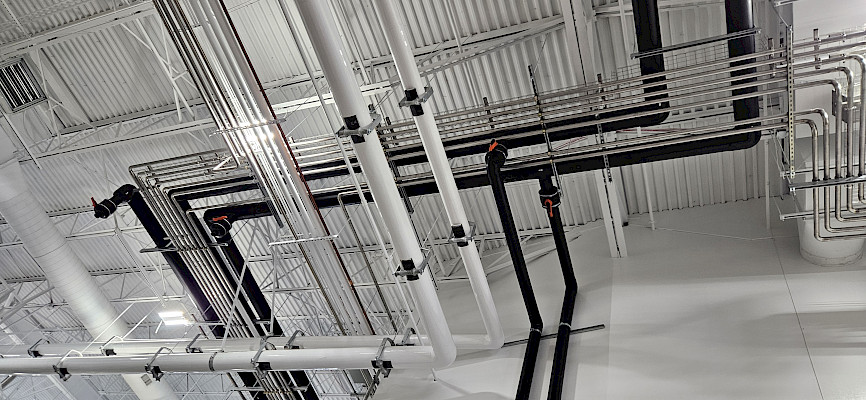

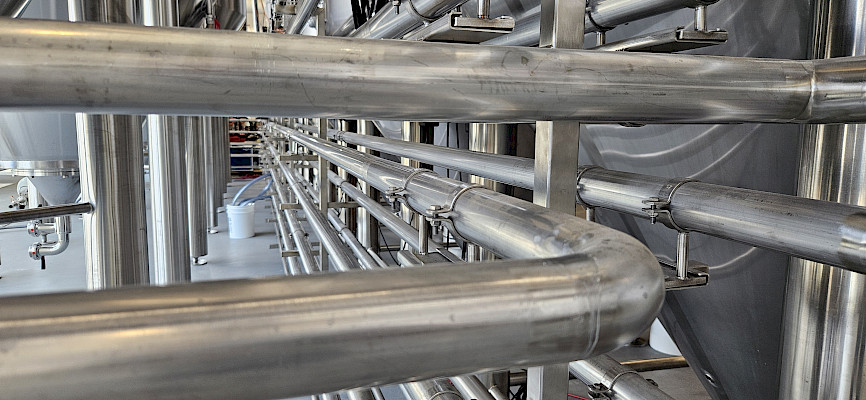

pipe fence from proBrau

minimizing use of hoses
automated wort way and tank CIP
hygenic design and flexible processes
engineered in Germany, build in USA
semi automation minimizes manual labor and allows certain degree of automation
